YIMAT-A6+2 This is an affordable 8-seat golf cart that offers a wide range of options and customization options to meet the diverse needs of users

Share:

Description

Golf Cart Details

Electric Golf Cart Introduction

Our electric golf carts feature maintenance-free welded

model YIMAT-A6+2
Technical Parameters Rated occupancy 8人 golf cart
Dimensions 4150*1250*1850mm
vehicle mass 700kg
rated load 900kg
wheelbases 3150mm
tread (on tire) 990mm/1000mm
ground clearance 120 mm
travel speed 30km/h(可调速)
braking distance 5000mm
turning radius 4500mm
gradient 10%
Motor power 3.5KW
battery pack 60V
charging time 6-8h
Mileage 60km
Basic configuration table 1. Body: steel frame, injection molding shell, automobile paint.

2. Chassis: the whole surface is treated by acid washing and phosphating corrosion-resistant cathodic electrophoresis to ensure that it never rusts and corrodes all year round, with excellent smoothness and sturdiness.

3. Floor: non-slip floor

4. Front windshield: acrylic plexiglass; optional folding glass

5. Roof: automotive special PP material injection molding one-piece roof

6. Seat: ergonomic seat, leather fabrics

7. Instrument panel: None

8. Direction system: bidirectional rack and pinion steering system, automatic gap compensation function

9. Lights/Horn: Combination headlights, turn signals, combination rear tail lights, brake lights, electric horn

10. Motor: AC asynchronous motor 3.5KW, superior traction performance, strong overload capacity and long service life.

11.Battery: Superwin lead-acid maintenance-free battery 100AH 5pcs Voltage: 60V

12. Electronic control system: special AC controller, with over-temperature protection circuit, hill assist anti-skidding function, and smoother startup.

13.Charger: Intelligent vehicle charger 60V/15A, charging time <10 hours (discharge rate of 80%)

14. Suspension system: MacPherson independent suspension; coil spring + cylinder hydraulic shock absorption. Integral rear axle, speed ratio 12.31:1 coil spring damping + cylinder hydraulic shock absorption + rear stabilizer bar

15. Brake system: rear wheel hub brake + compound pedal parking

16. Tire form: special ball car tire 205*50-10

note Delivered with charger, logo making, accompanying tools, manual, certificate of conformity. Optional lithium battery, rain curtain, sunshade, aluminum alloy wheels, etc.
color It is possible to develop

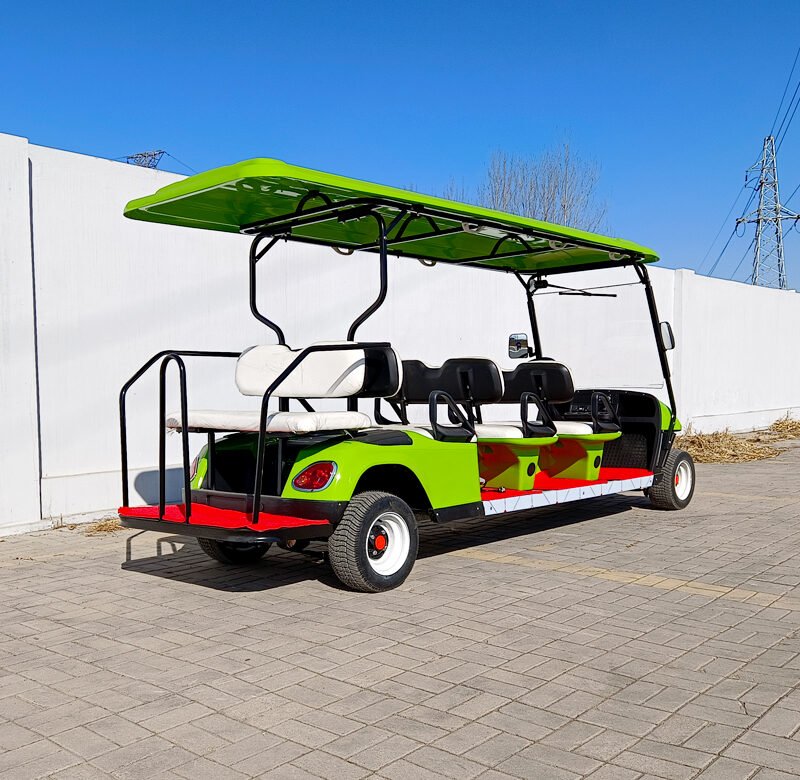

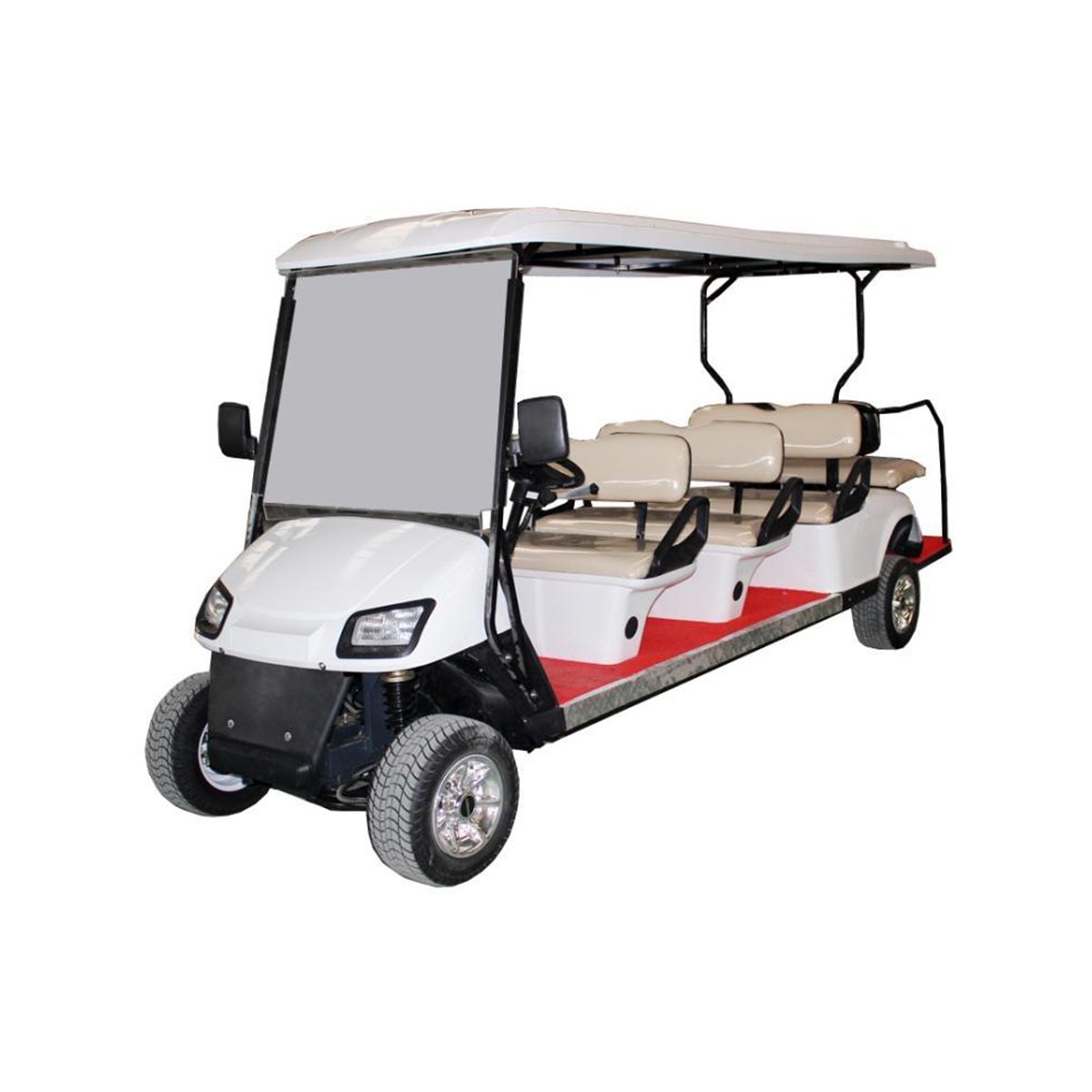

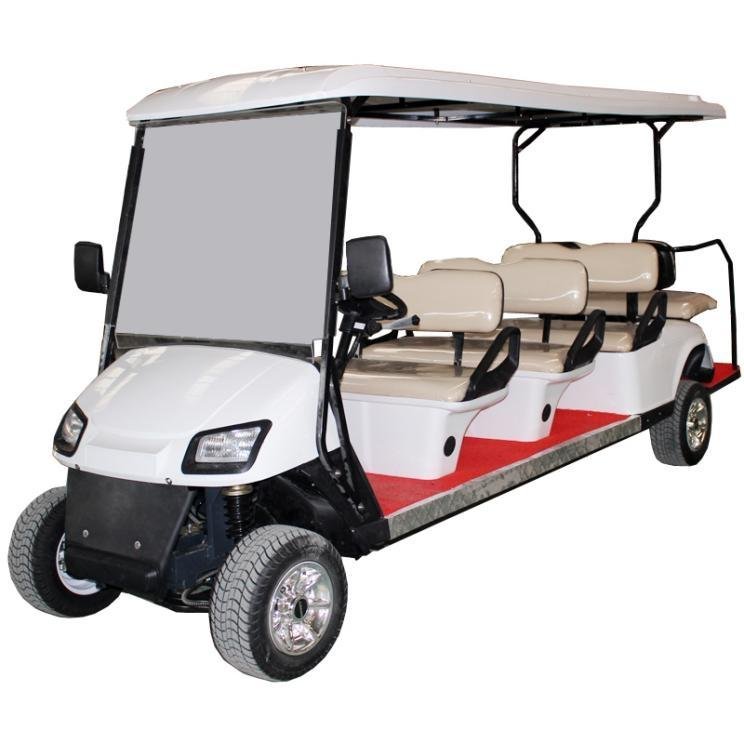

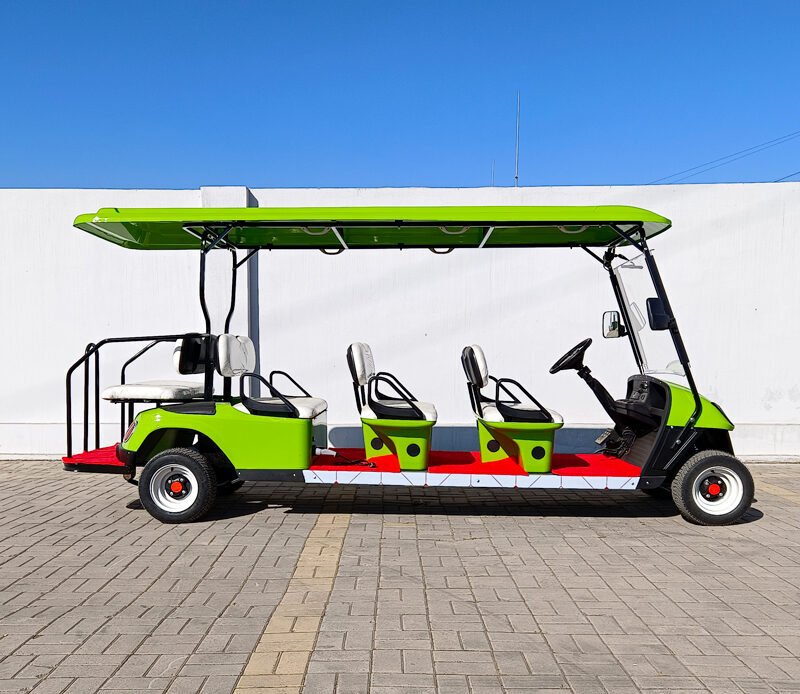

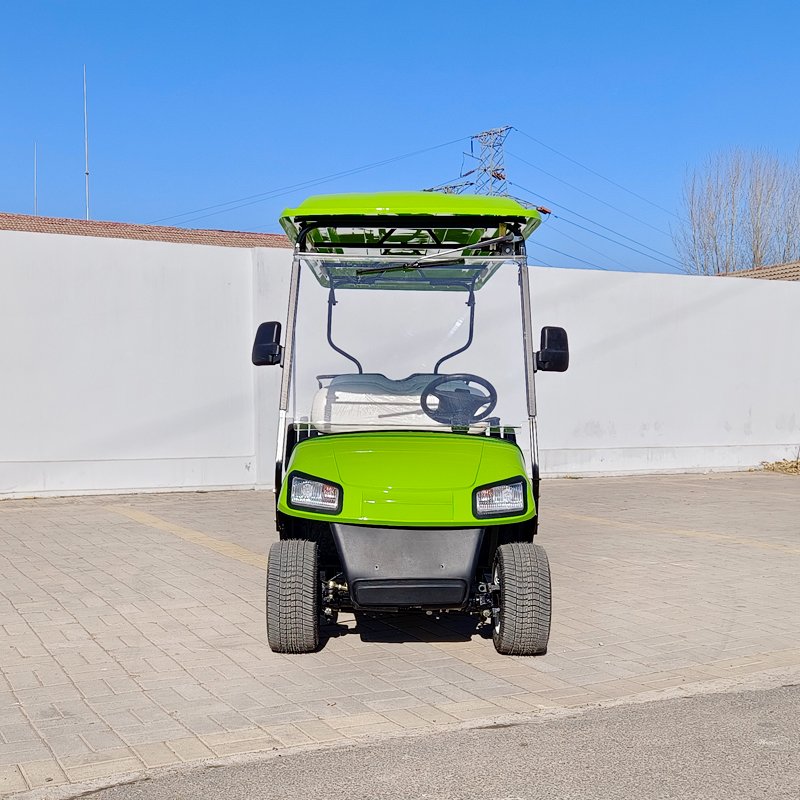

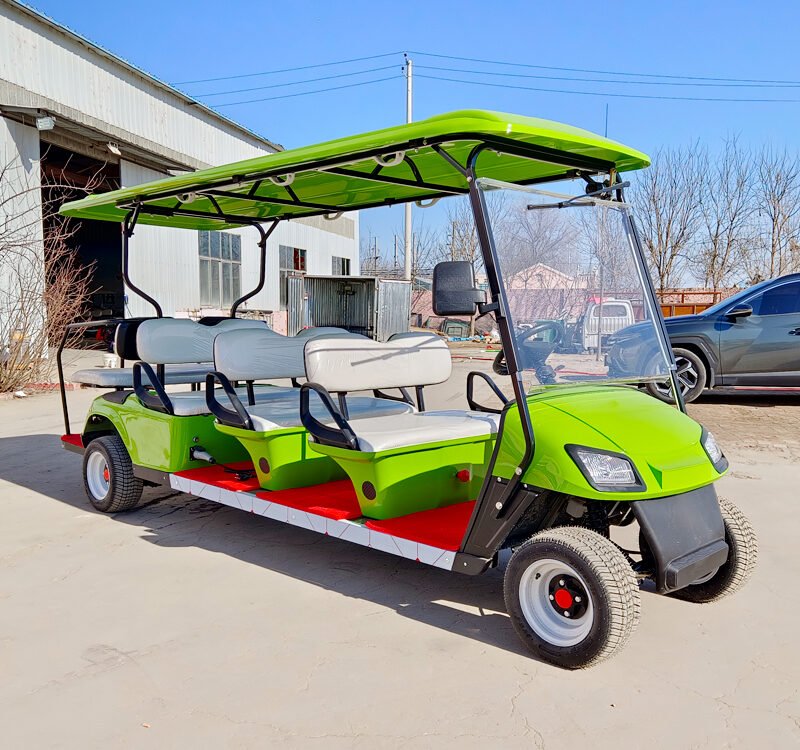

Product photos
