YIMAT-D2+2(high endurance) Powerful, spacious and comfortable 4-seater golf cart Premium Edition

Share:

Description

Golf Cart Details

Electric Golf Cart Introduction

Our electric golf carts feature maintenance-free welded

MODEL YIMAT-D2+2(high endurance)
Technical Parameters Rated occupancy 4人 golf cart
Dimensions 2840*1350*2060mm
vehicle mass 510kg
rated load 800kg
wheelbases 1720mm
tread (on tire) 910mm/1040mm
ground clearance 150 mm
travel speed 30km/h(可调速)
braking distance 4000mm
turning radius 3500mm
gradient 20%
Motor power 5KW
battery pack 48V
charging time 6-8h
Mileage 90km
Basic configuration table 1. Body: steel body frame, injection molding shell, automobile paint, side pedals.

2. Chassis: The whole surface is treated with acid-washing and phosphating corrosion-resistant cathodic electrophoresis to ensure that it never rusts and corrodes all year round, with excellent smoothness and sturdiness.

3. Floor: aluminum pattern non-slip flooring

4. Front windshield: acrylic plexiglass; optional folding glass

5. Roof: automobile special PP material injection molding one-piece roof

6. Seats: luxury seats with rear folding seats

7. Instrument panel: Increase the LCD meter display (including voltage, current, speed, mileage, lights, front and rear direction change and other signals)

8. Direction system: bidirectional rack and pinion steering system, automatic gap compensation function

9. Lighting/horn: front lighting, turn signal, fog light, reverse light, rear tail light, snail horn, reverse voice horn.

10.Motor: AC asynchronous motor 5KW, superior traction performance, strong overload capacity, long service life 11.Battery: Superwin lead-acid maintenance-free battery 150AH 6pcs Voltage: 48V

12. Electronic control system: special AC controller, with over-temperature protection circuit, hill assist anti-skidding function, start more smoothly.

13.Charger: Intelligent vehicle charger 48V/25A, charging time<10 hours (discharge rate of 80%)

14. Suspension system: MacPherson independent suspension; coil spring + cylinder hydraulic shock absorption. Integral rear axle, speed ratio 12.31:1 coil spring damping + cylinder hydraulic shock absorption + rear stabilizer bar

15. Brake system: rear wheel hub brake + compound pedal parking

16. Tire form: special ball car tires increased 14-inch beach wheels

note Delivered with charger, logo making, accompanying tools, manual, certificate of conformity. Optional lithium battery, rain curtain, sunshade, aluminum alloy wheels, etc.
color It is possible to develop

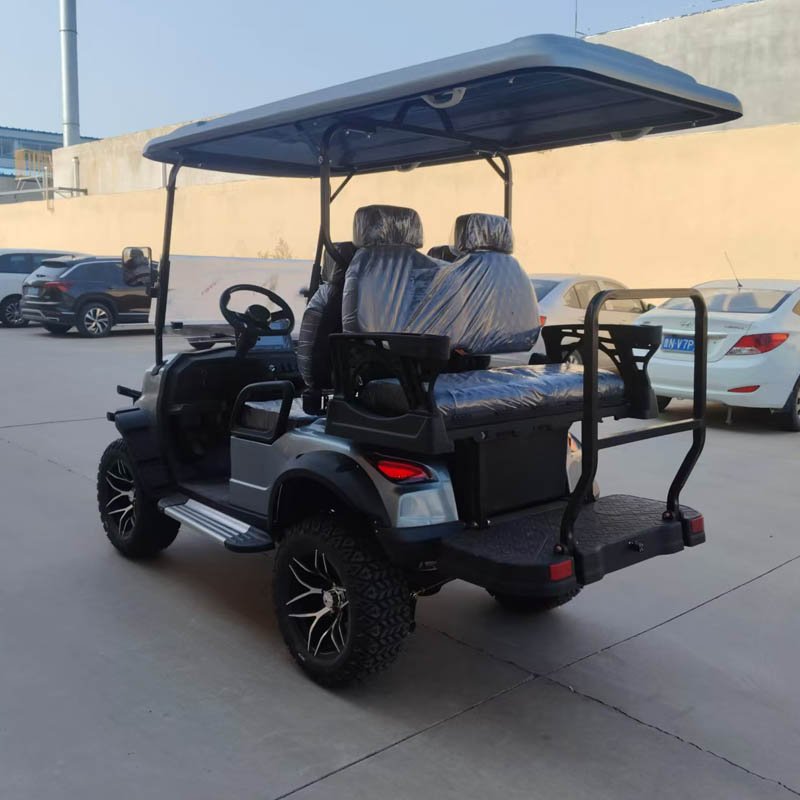

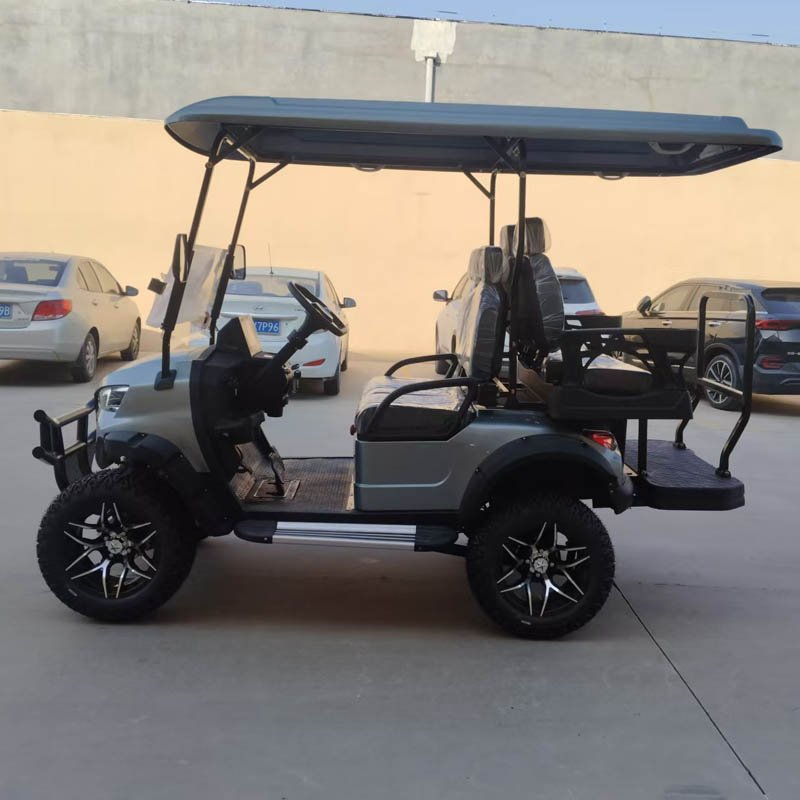

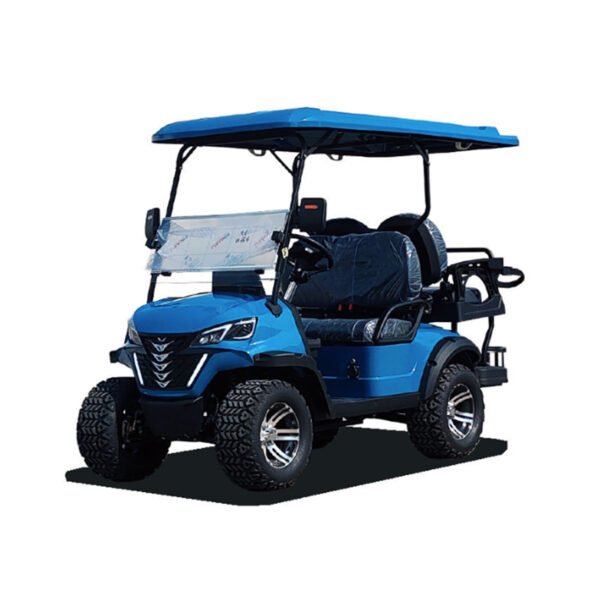

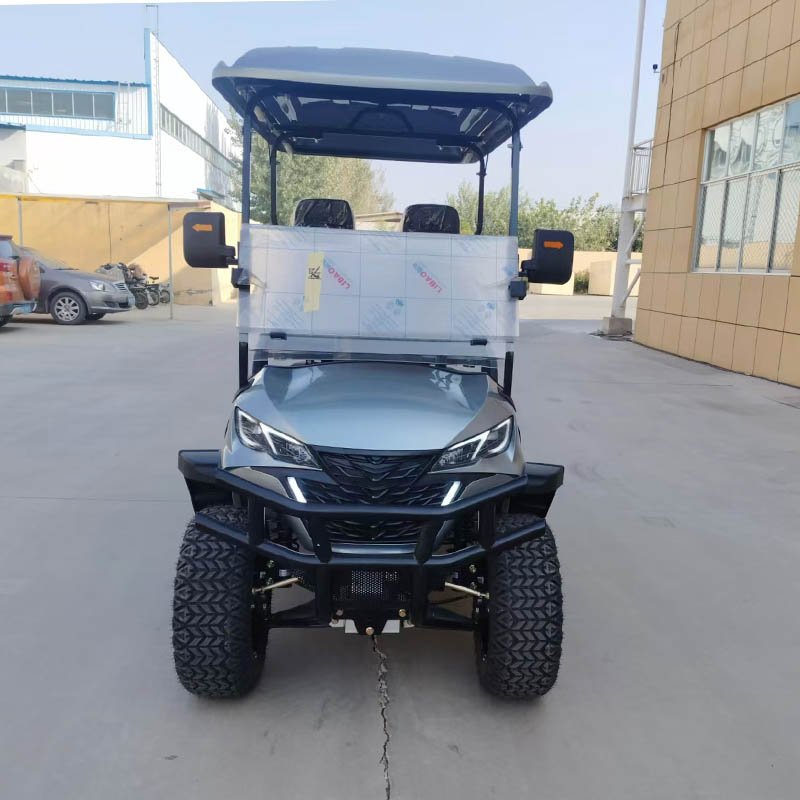

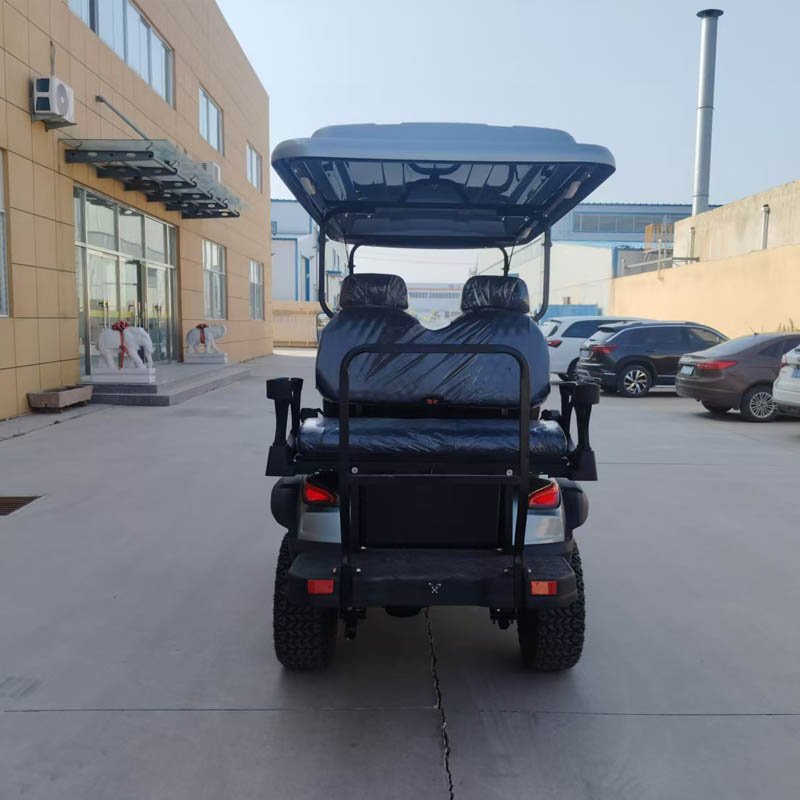

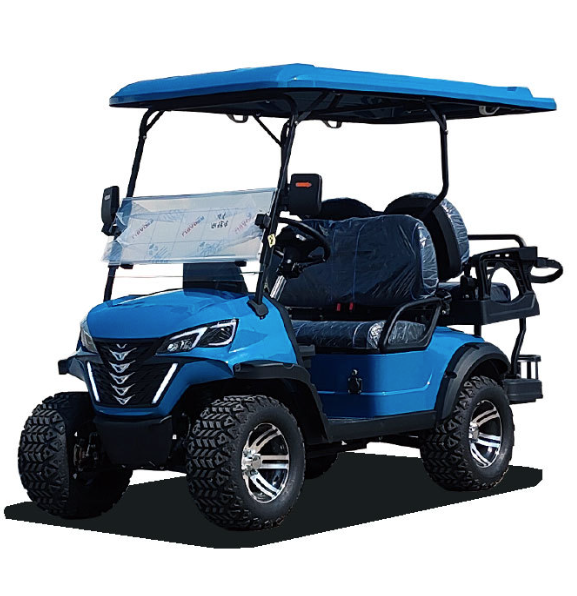

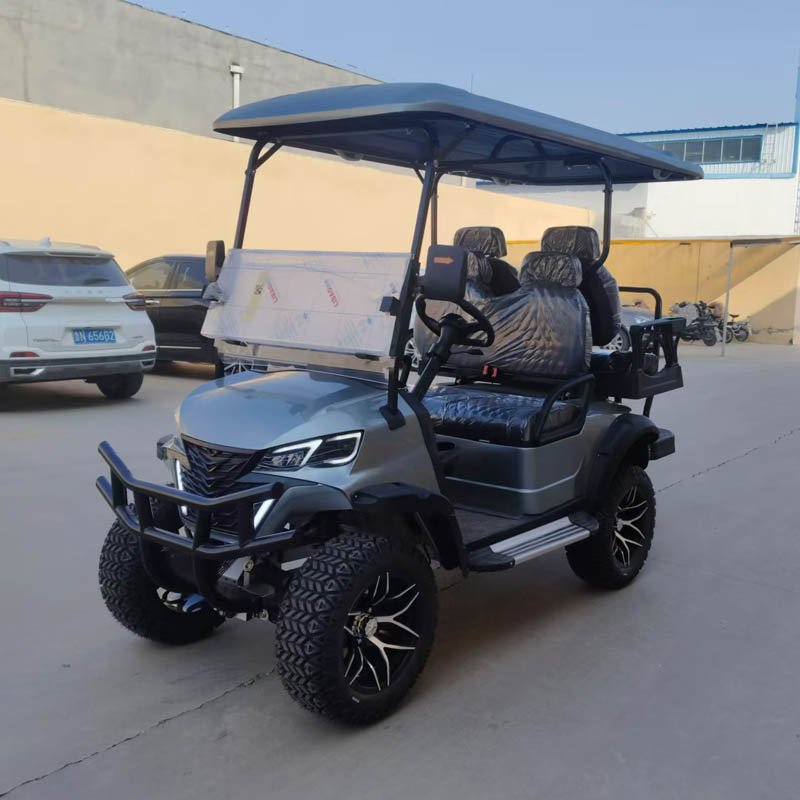

Product photos
